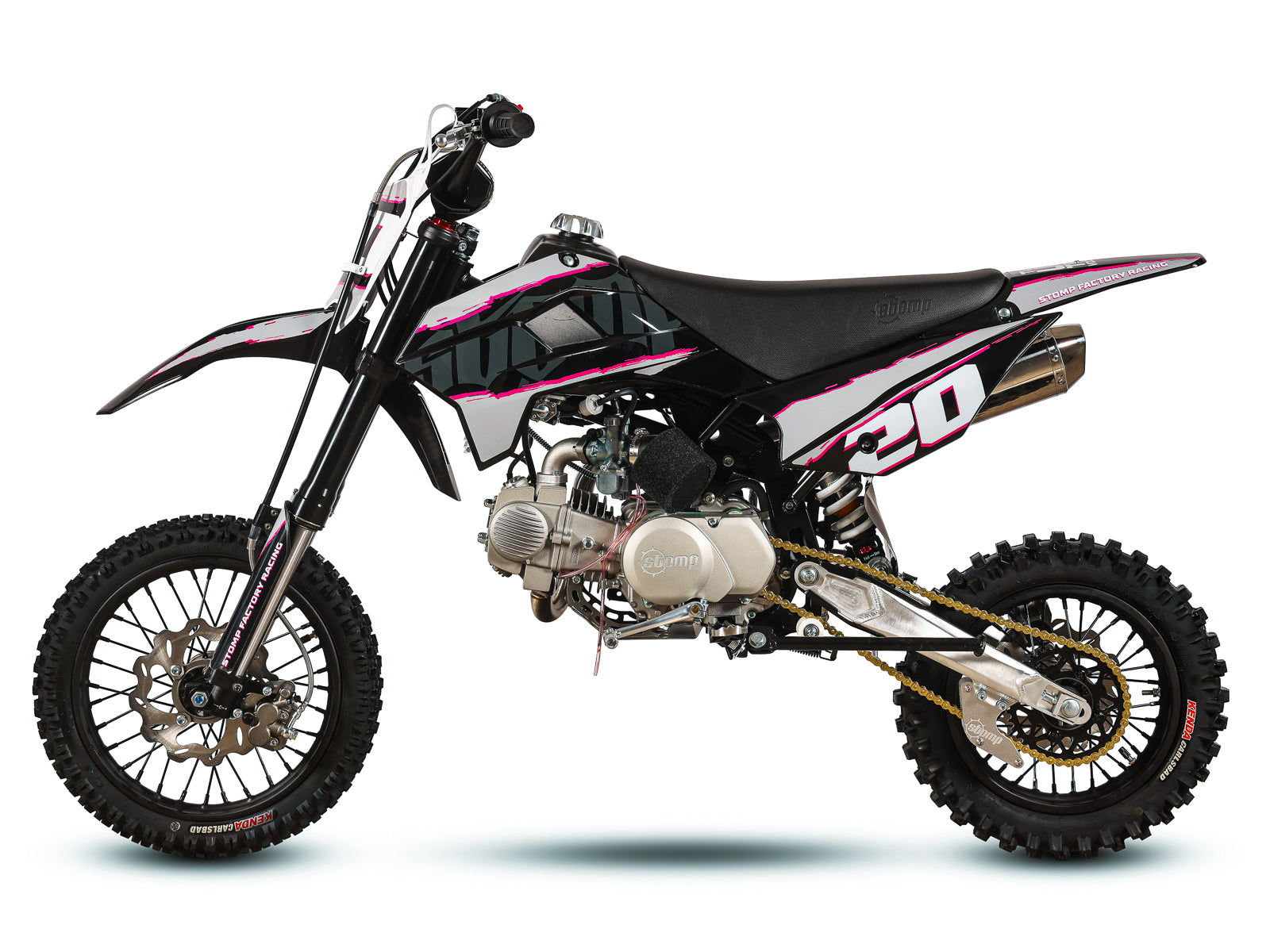

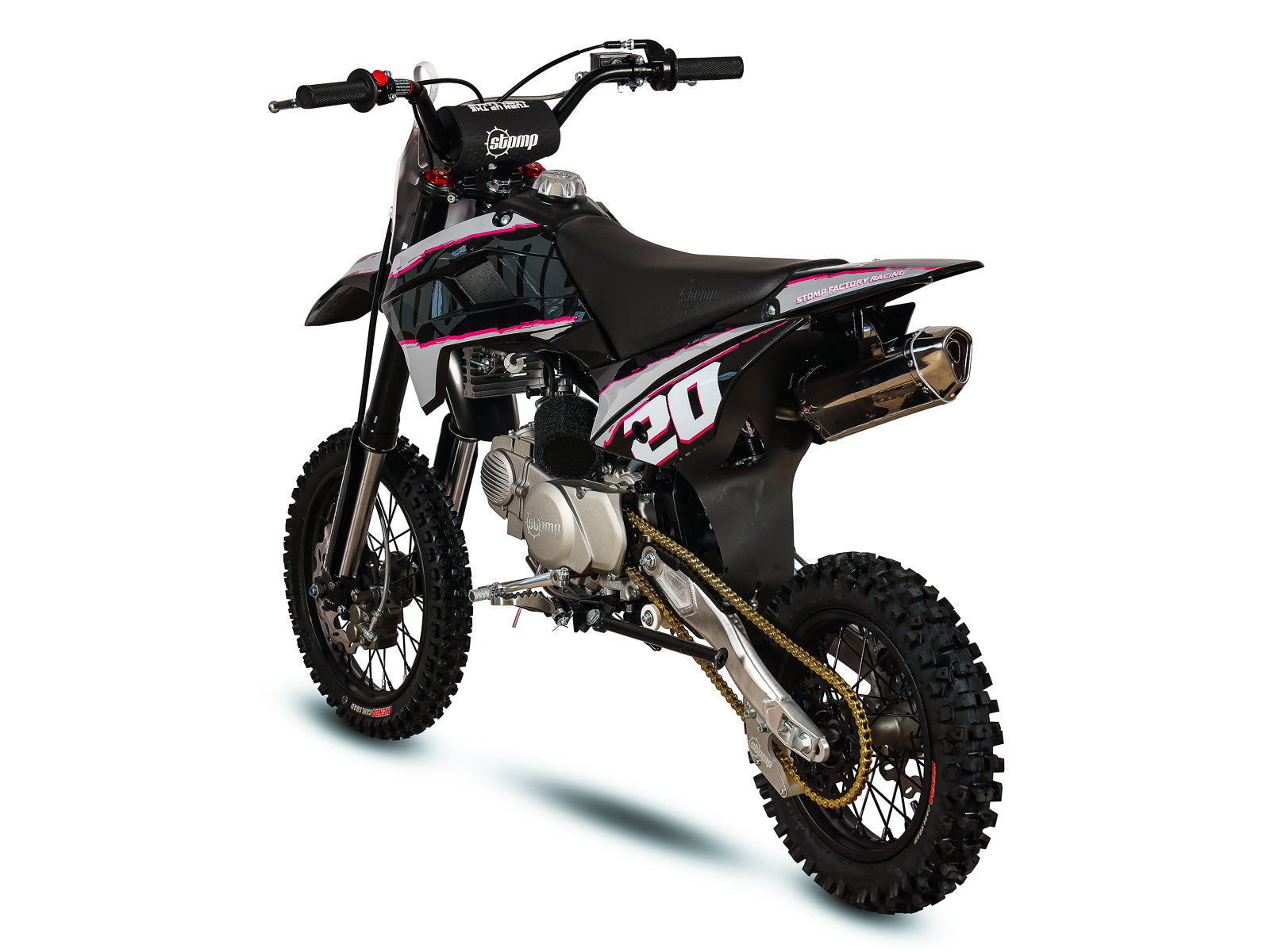

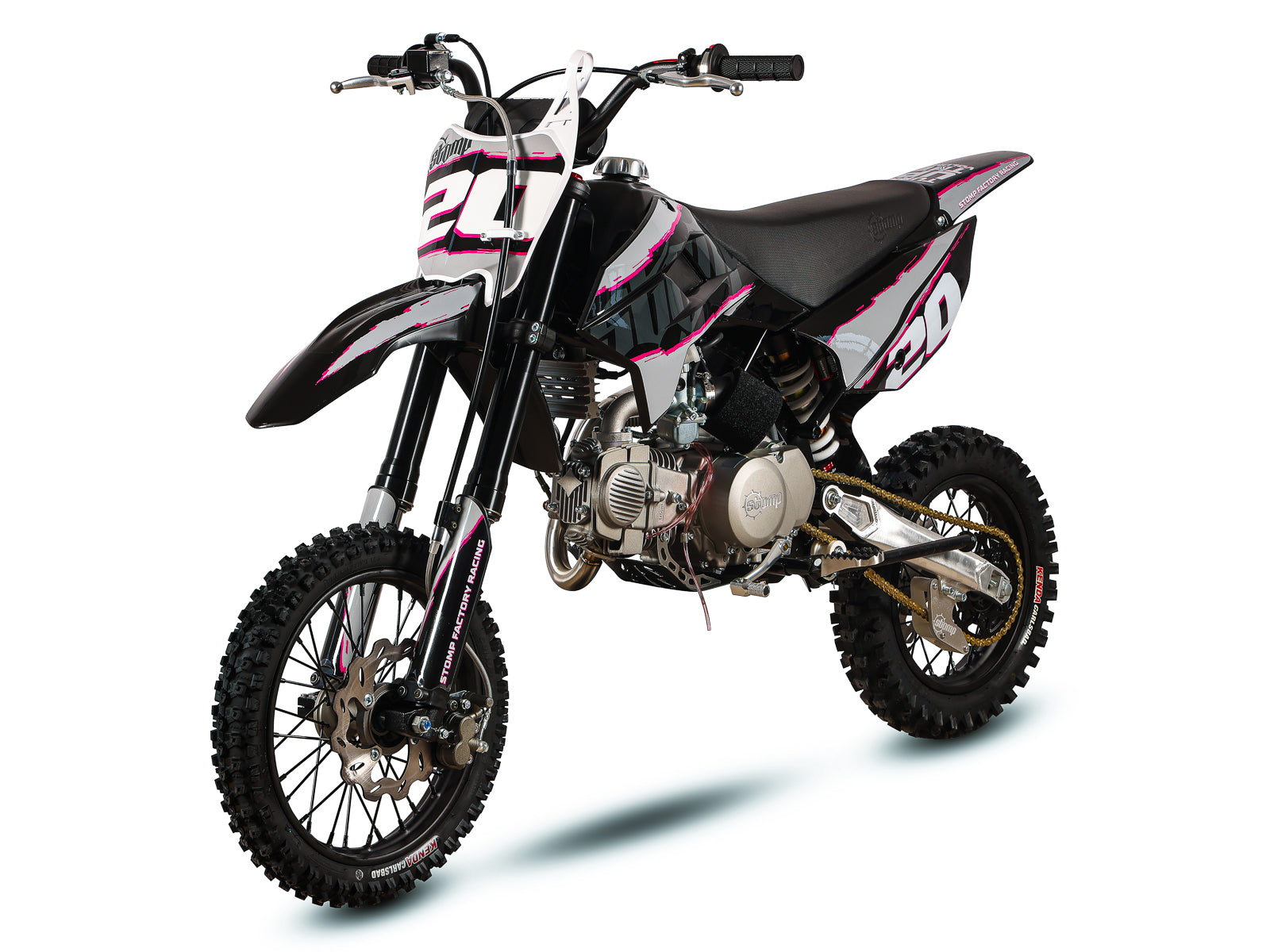

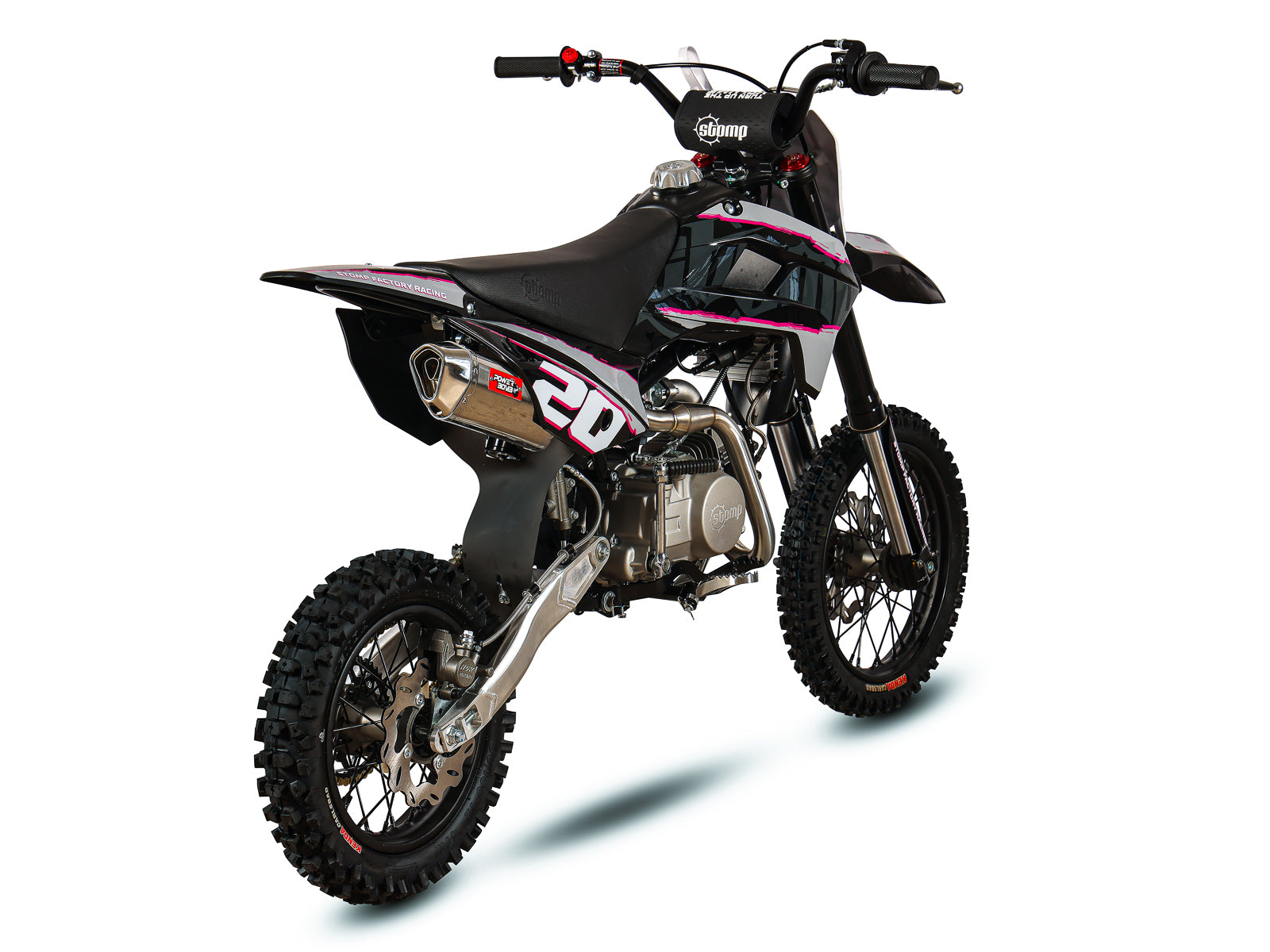

Stomp Z3R-140

Stomp Z3R-140

Slide image
Slide image
Slide image
Slide image
Slide image
Slide image

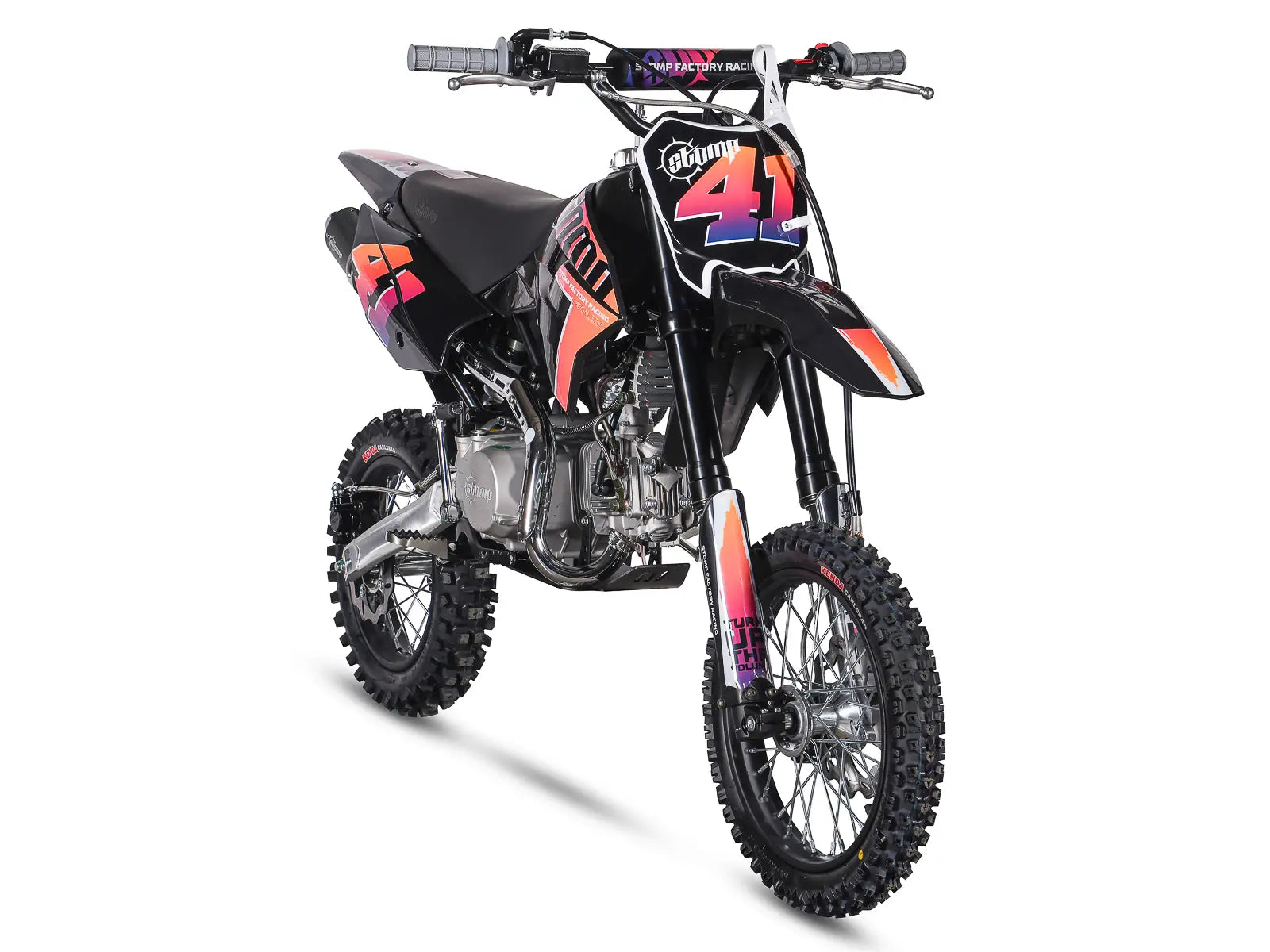

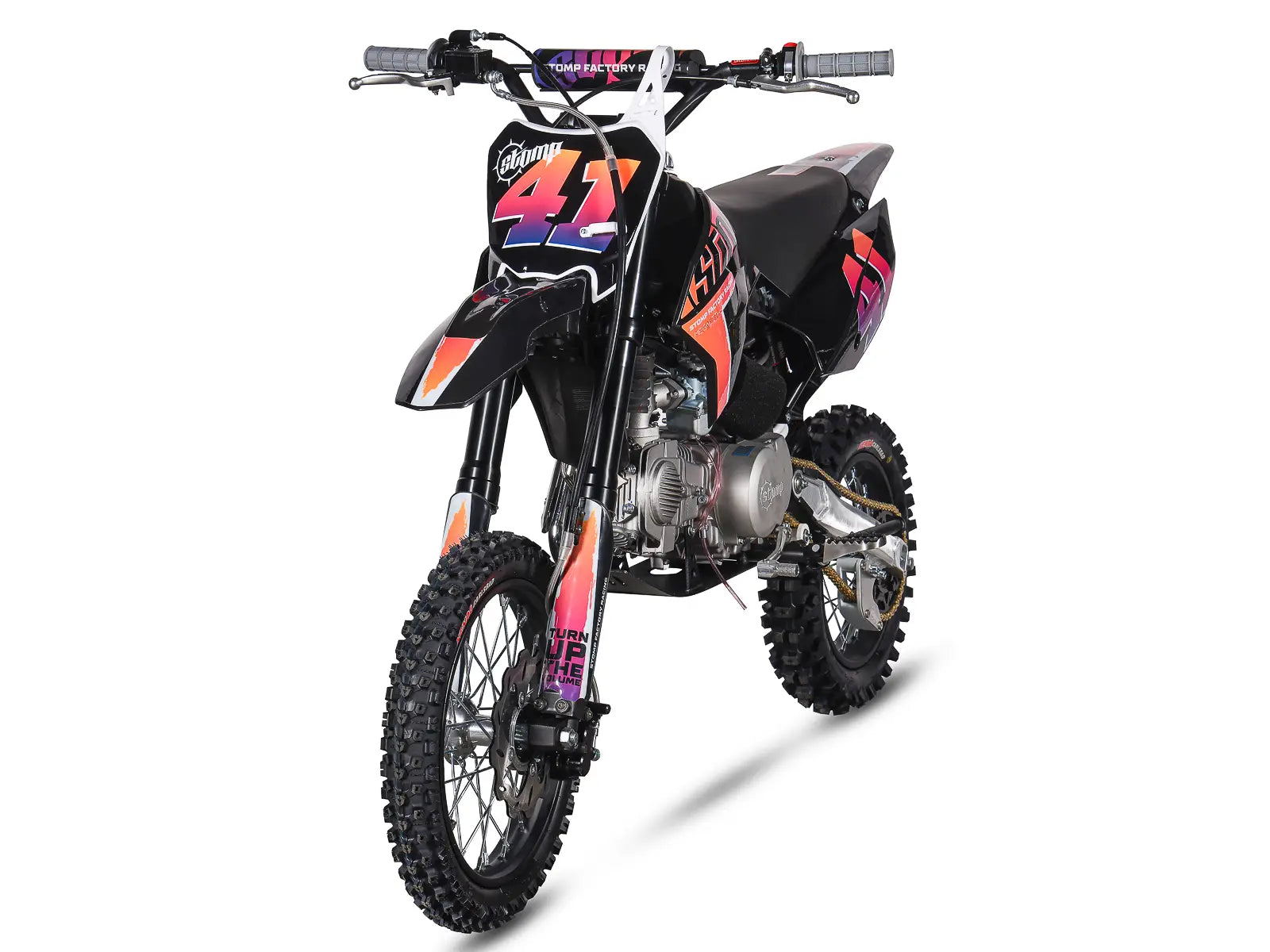

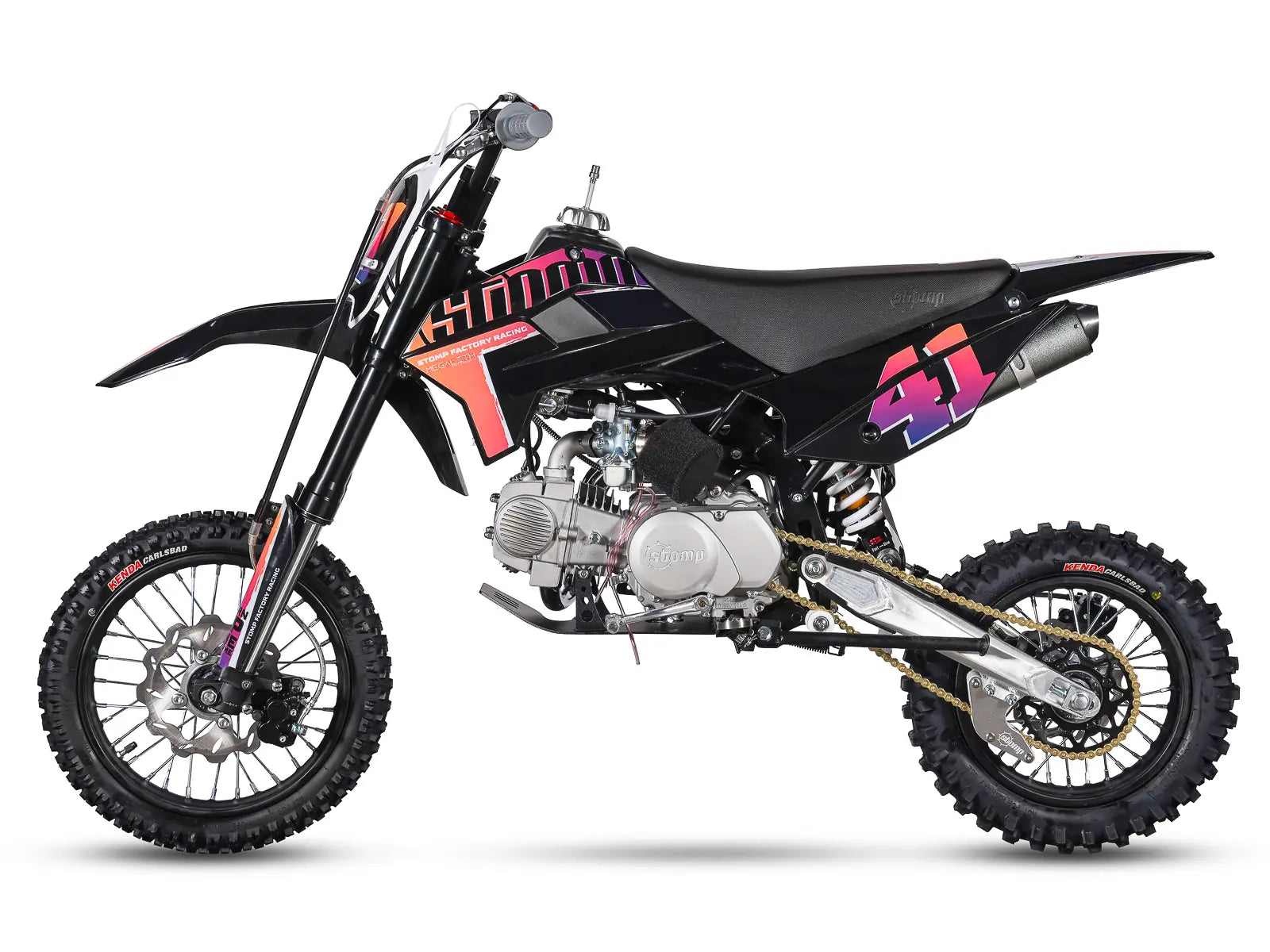

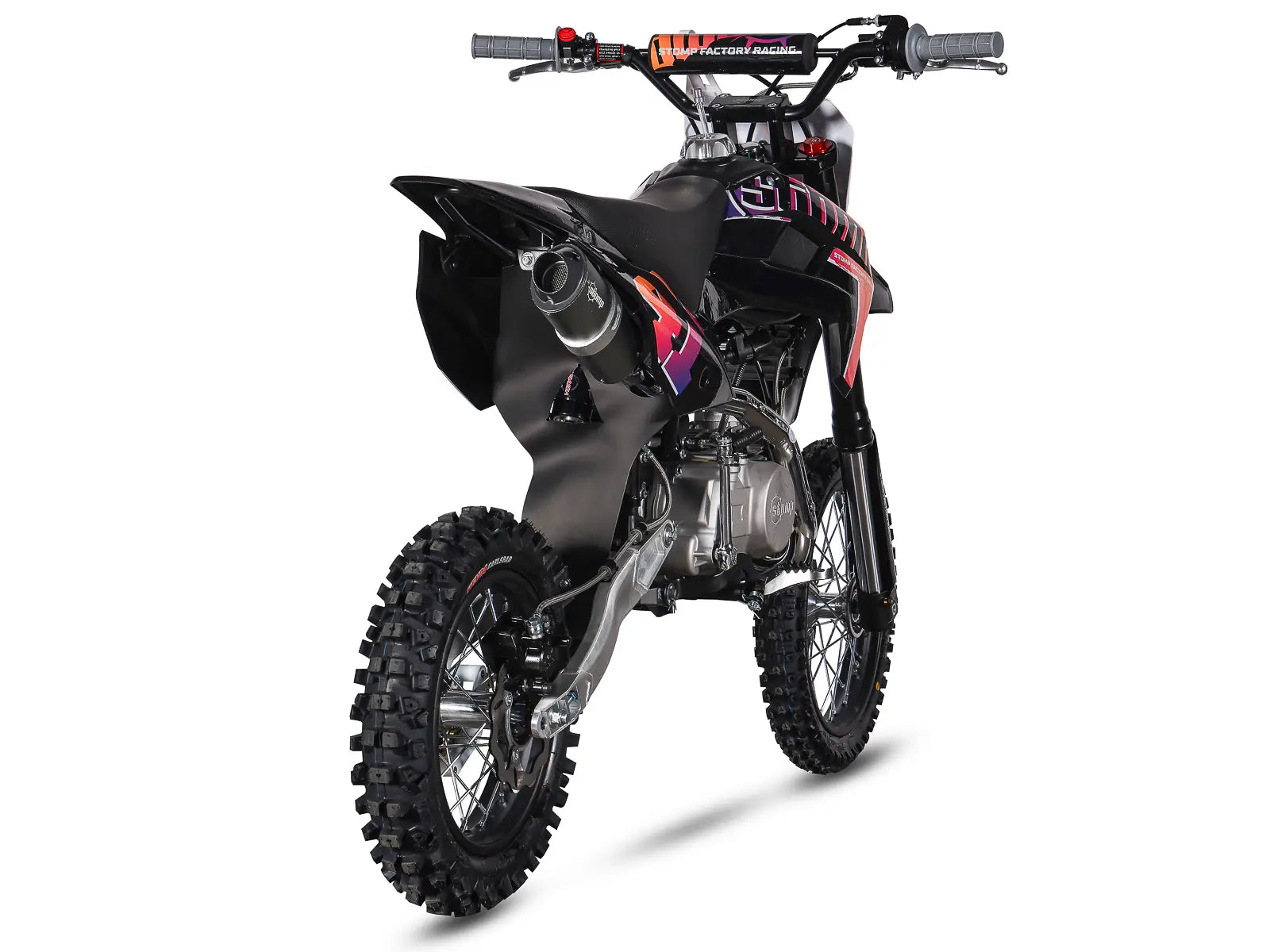

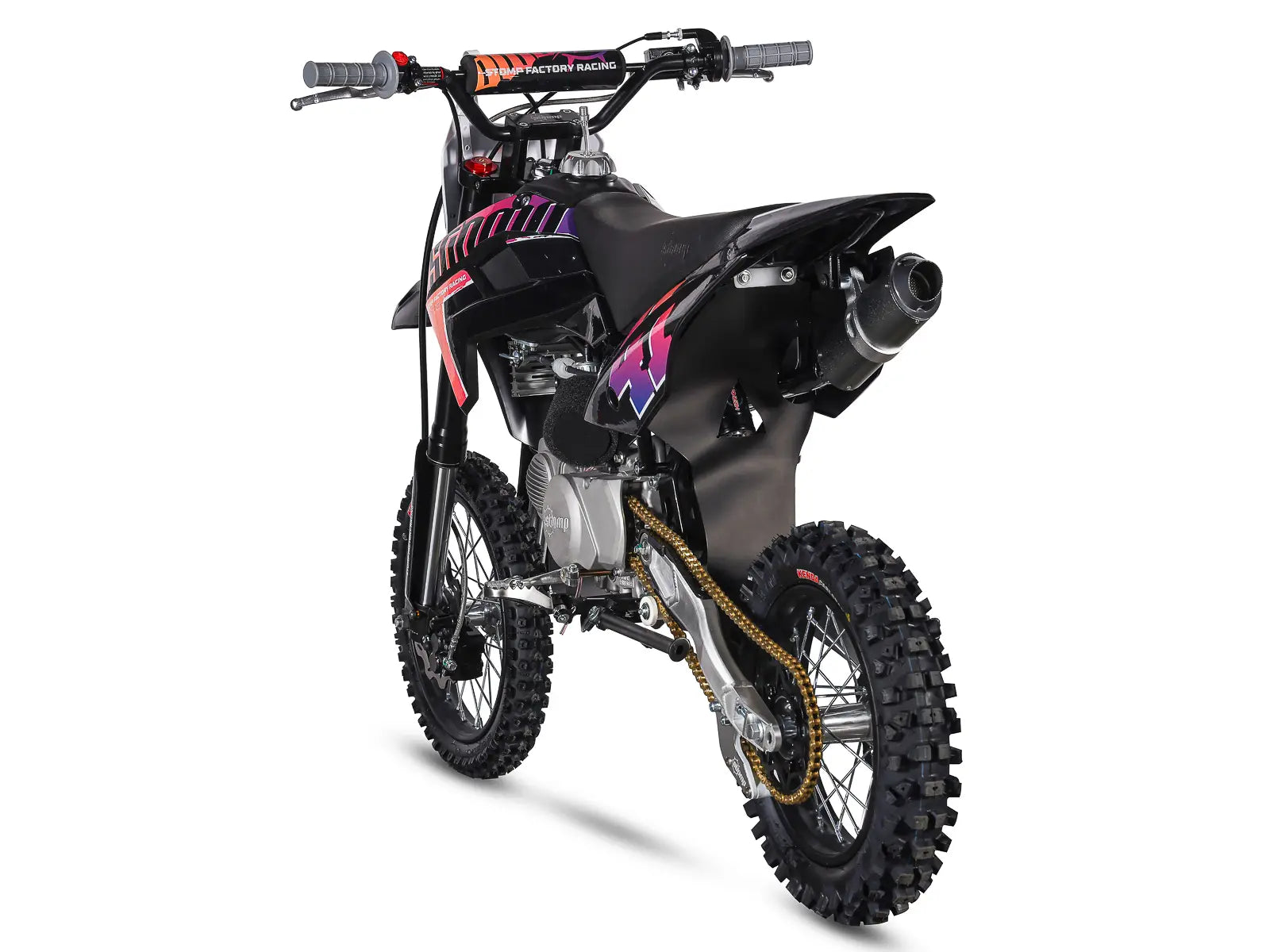

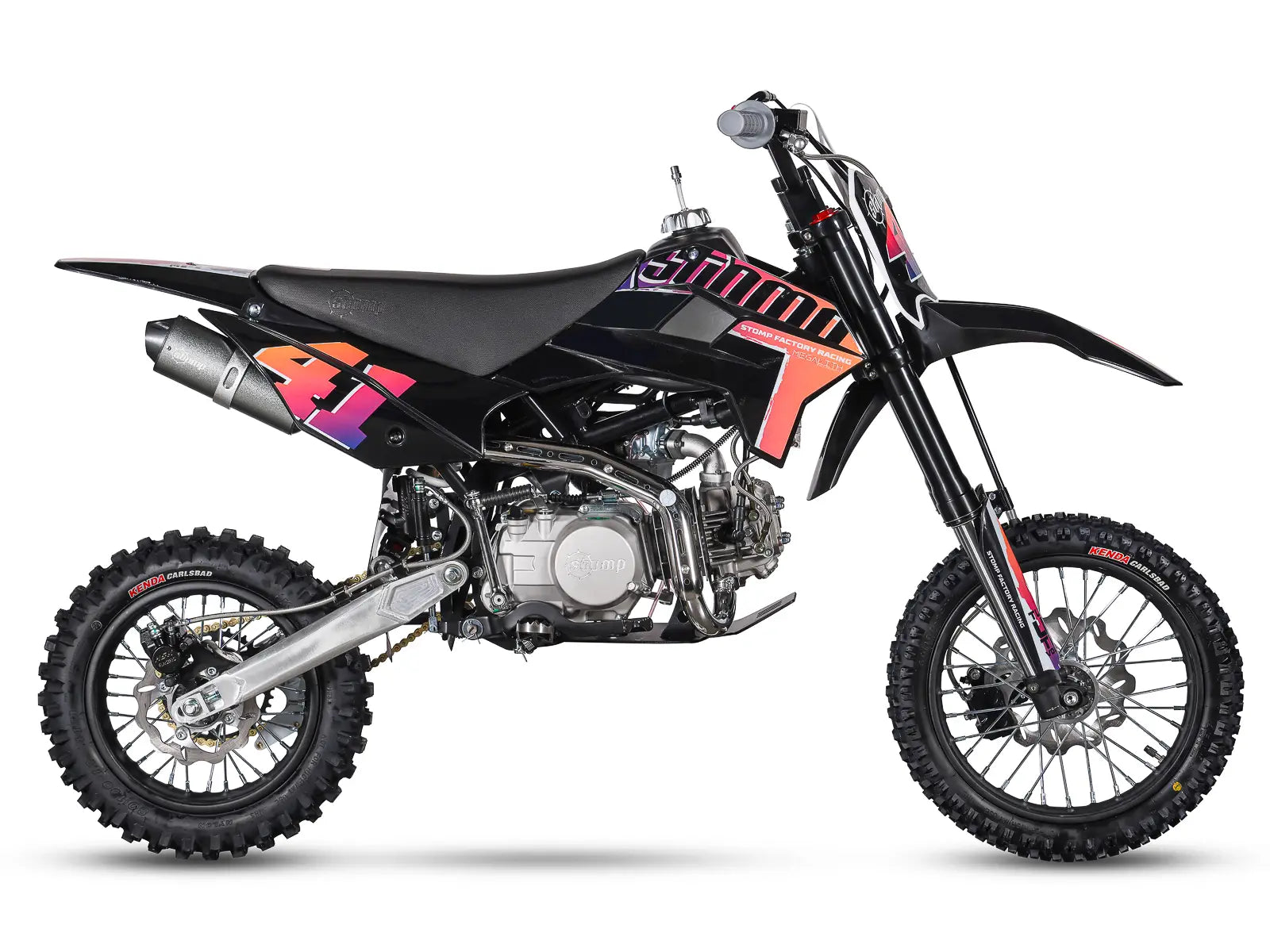

Stomp Z3R-140

Regular price £1,399.00

Want this bike delivered assembled? Choose our B2R (built to race) service in the check out and our team will get to work.

Back in 2007, Stomp took the legendary YX140 engine and squeezed it into a pit bike named the SuperStomp 140. That combination of a lightweight aftermarket chassis and a seriously lively engine helped put Stomp firmly on the map.

The Z3R-140 continues that legacy. At its heart is the immense 4-stroke, single-cylinder YX140, using Stomp's SR140C Z40 specification. But the "R" in Z3R stands for Race, and this bike has always been about much more than just its engine.

The lightweight single-backbone chassis keeps mass down and agility high. An alloy swingarm, nitrogen-filled fully adjustable DNM rear shock and fully adjustable SP 735 USD forks give the rider the ability to fine-tune the bike for different tracks, terrain and rider weights.

For 2026, we've pushed the Z3R package even further.

The cockpit now features Series 6 alloy variable-diameter handlebars, new grips, new black upper and lower clamps and a Stomp-logo bar pad cover. It's a substantial visual upgrade, but one designed around the controls and contact points that matter when you're riding hard.

The exhaust system has also been updated with a new lower-noise Power bomb muffler.

Further upgrades include an updated rear brake, titanium-colour front brake, titanium-colour wheel hubs, black spokes and nipples and a titanium-finish engine bottom support, bringing a sharper and more cohesive factory finish across the whole bike.

Underneath those updates is still the Z3R riders know: a lightweight, compact race-focused pit bike with quality adjustable suspension and the legendary YX140 providing the power.

The Z3R gives you more room than a traditional small-wheel pit bike while remaining light enough to throw around. Aggressive styling, distinctive factory graphics and carefully selected race components complete the package.

This is the flagship 140 in the Stomp range — the result of almost two decades of pit bike development, racing and refinement.

Stomp on the opposition. Turn up the volume!

Distributor

Stomp Distribution LTD

Manufacturer

Stomp

Model

Z3R-140

Warranty

6 months, parts only

Engine

YX140 with Z40 race cam, 4-stroke, oil cooled

Valves

SOHC, 2 valve

Engine Displacement

140cc

Bore x Stoke

56 x 57mm

Compression Ratio

9.8:1

Fuel System

Carburettor 26mm

Max Power

8.2 kw @ 8000 RPM

Max Torque

10.2 N·m @ 7500 RPM

Clutch

Wet, 5 disc

Ignition System

CDI

Starting System

Kick start

Transmission

Manual four speed with N-1-2-3-4

Final Drive

420 chain

Frame Design

Light-weight steel spine frame

Rear Subframe Design

CRF70 subframe

Swing Arm

Alloy 410mm

Footpegs

Upgraded PRO Footpegs

Handlebar

NEW alloy fatbar

Exhaust

Mandrill bent big bore 32mm OD race pipe

Muffler

Power Bomb

Front Suspension

USD SP 735mm (fully adjustable) forks

Rear Suspension

DNM 290mm Piggy Back nitrogen filled (adjustable)

Front Rim

Steel rims with SDG hubs 14"

Rear Rim

Steel Rims With SDG Hubs 12"

Rim Lock

Rear

Front Tyres

Kenda 60/100-14

Rear Tyres

Kenda 80/100-12

Front Brake

Hydraulic brake 210 wavey disc

Rear Brake

Hydraulic brake 180 wavey disc

Wheelbase

1240mm

Ground Clearance

280mm

Seat Height

820mm

Dry Weight

71kg

Fuel Capacity

5.5 litres

Wheel Size

14-12

Packing Size

1560 x 380 x 735mm
